Capabilities
Production capabilities for welded structures, machining and assembly of industrial equipment.
Cutting
- Oxy-fuel table2 500 × 12 000
- Laser12 kW
- Tolerance±0.5 mm
Pressing and rolling
- Press brake800 tf · 6 500 mm
- Rolling width3 150 mm
- Min. roll Ø550 mm
Welding
- ProcessesMIG · MAG · TIG
- Positionersup to 3 t
- Certified toEN ISO 3834-2
Machining
- NC boring X / Y14 000 / 3 300
- Soramill, 7 axesX 8 000 mm
- Vertical latheØ 3 300 mm
Surface and heat treatment
- Blasting cabin15 × 6 × 5 m
- Stress relief furnace800 °C
- Vibratory stress reliefup to 30 t
Assembly and testing
- SystemsElectrical · hydraulic · pneumatic
- Trial runbefore shipping
- Packingsea-freight crates
Production equipment
| Machine | Axes | Travel X · Y · Z (mm) | Rotary table (mm) | Max. load |
|---|---|---|---|---|
| SORALUCE Soramill | 7 CNC | 8 000 · 2 800 · 1 500 | 2 500 × 2 500 | 30 t |
| COLGAR | 7 CNC | 3 500 · 2 000 · 2 000+1 000 | 2 500 × 2 000 | 30 t |
| HECKERT UNION CBFK | 5 CNC | 3 000 · 2 000 · 900+700 | 2 500 × 2 000 | 20 t |

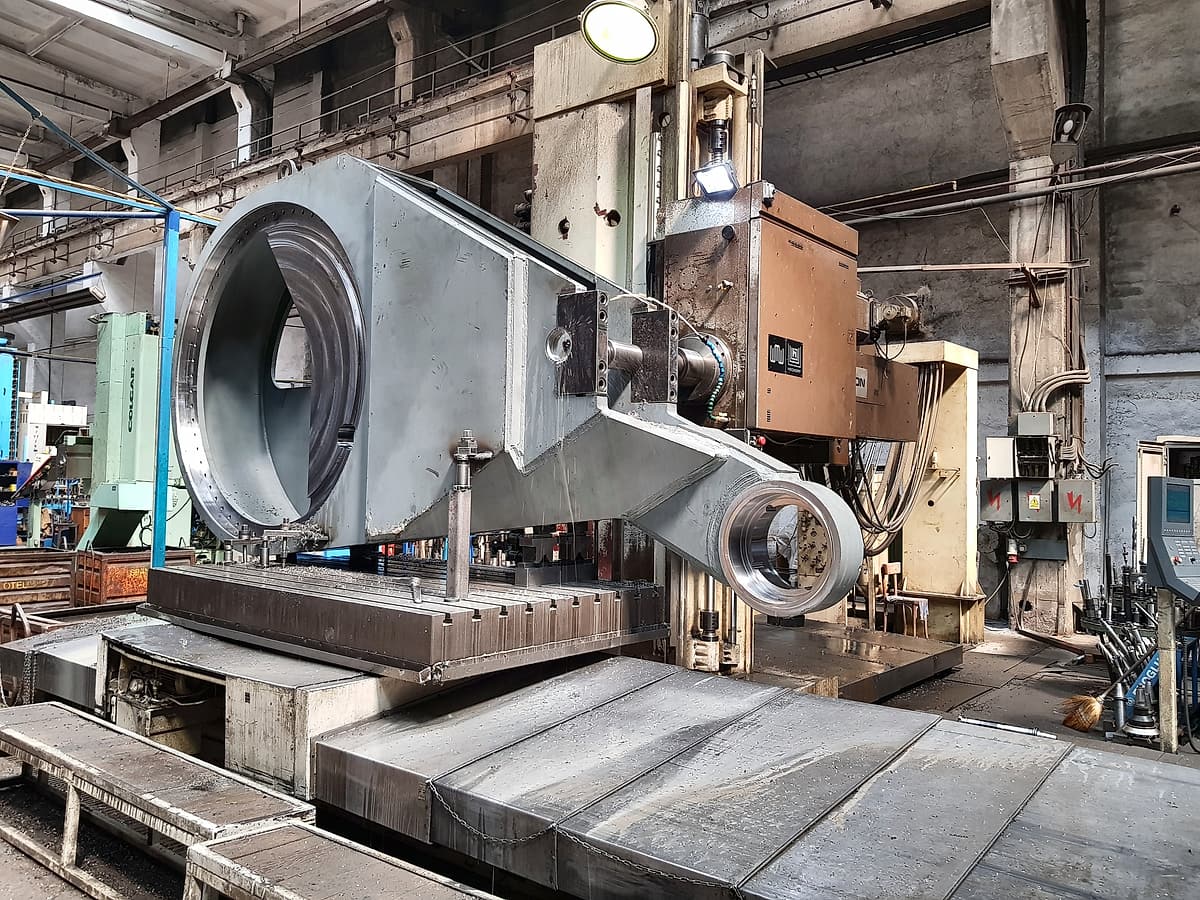

| NC boring and milling | NC | 14 000 · 3 300 · 900+600 | 2 000 × 1 700 | 12 t |
| Portal milling | — | 2 000 × 6 000 | — | — |
| Vertical lathe | — | Ø 3 300 | — | — |
| Process | Working range | Thickness / force | Tolerance |
|---|---|---|---|
| Oxy-fuel cutting, NC | 2 500 × 12 000 mm | 200 mm | ±0.5 mm |
| Laser cutting, 12 kW | 2 000 × 6 000 mm | 30 mm | ±0.1 mm |
| Guillotine shear | 2 500 mm wide | 15 mm | — |
| Band saw | Ø 300 mm | — | — |
| Hydraulic press | 3 200 × 2 250 mm, stroke 1 000 mm | 800 tf | — |
| Press brake | 6 500 mm | 800 tf | — |
| Plate rolling | 3 150 mm wide, min. Ø 550 mm | — | — |
| Plate straightening | 3 000 mm wide | 20 mm | — |
| Equipment | Dimensions (mm) | Notes |
|---|---|---|
| Blasting cabin | 15 000 × 6 000 × 5 000 | Large welded structures |
| Blasting cabinet | 1 000 × 600 × 800 | Small parts |
| Paint cabin | 12 000 × 5 000 × 4 000 | Up to 80 °C, trolley and part handling |
| Stress relief furnace | 4 500 × 1 600 × 1 100 | Electric bogie hearth, 800 °C, programmable |
| Vibration stress relief | — | Parts up to 30 t |
| Gear cutting | Ø 1 000 spur · Ø 750 bevel | Module 1–12 and 3–16 |
Quotation enquiries
Please send your technical drawings, specifications and required quantities for review.
