Assembly and testing
Mechanical assembly, installation of electrical, hydraulic and pneumatic systems, functional testing and packing for transport.
Mechanical assembly

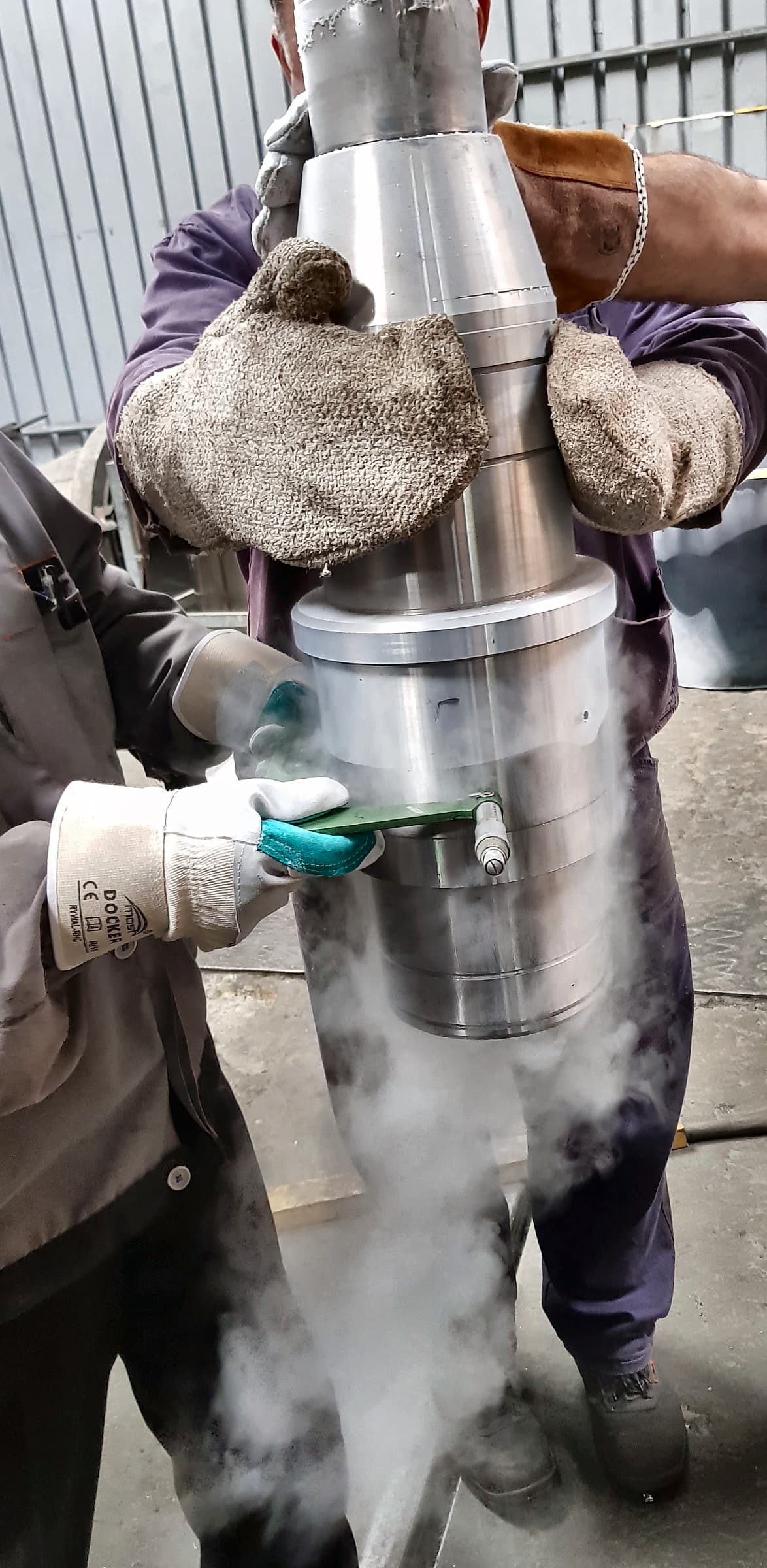

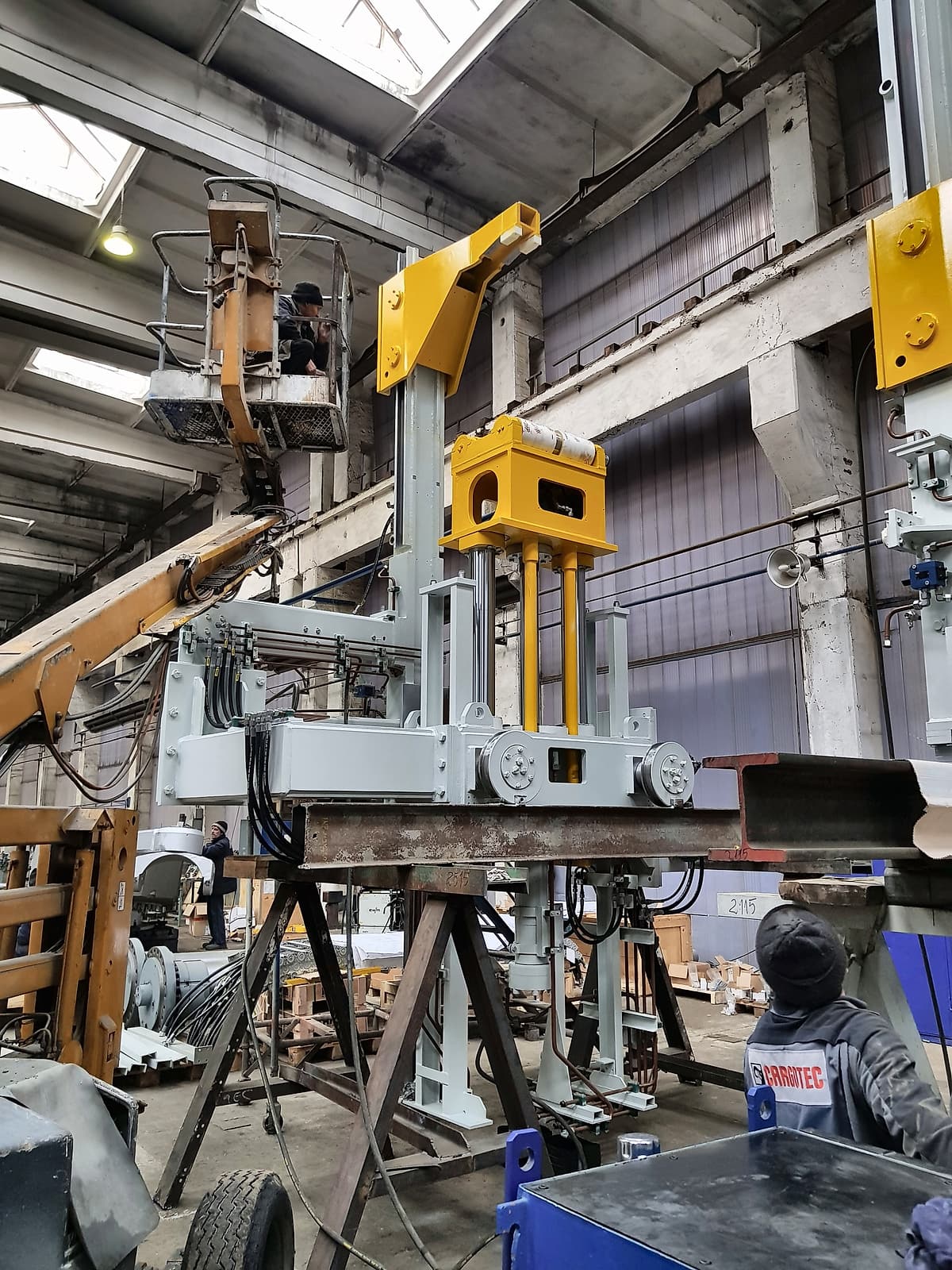

Assembly on modular T-slot floors, including shrink fits with liquid-nitrogen cooling.
| Assembly | Complete machines and sub-assemblies |
|---|---|
| Shrink fitting | Liquid-nitrogen cooling |
System installation and testing
Installation of electrical, hydraulic and pneumatic systems, followed by functional testing before dispatch.
| Installations | Electrical · hydraulic · pneumatic |
|---|---|
| Testing | Trial run and dimensional report |
Packing and transport

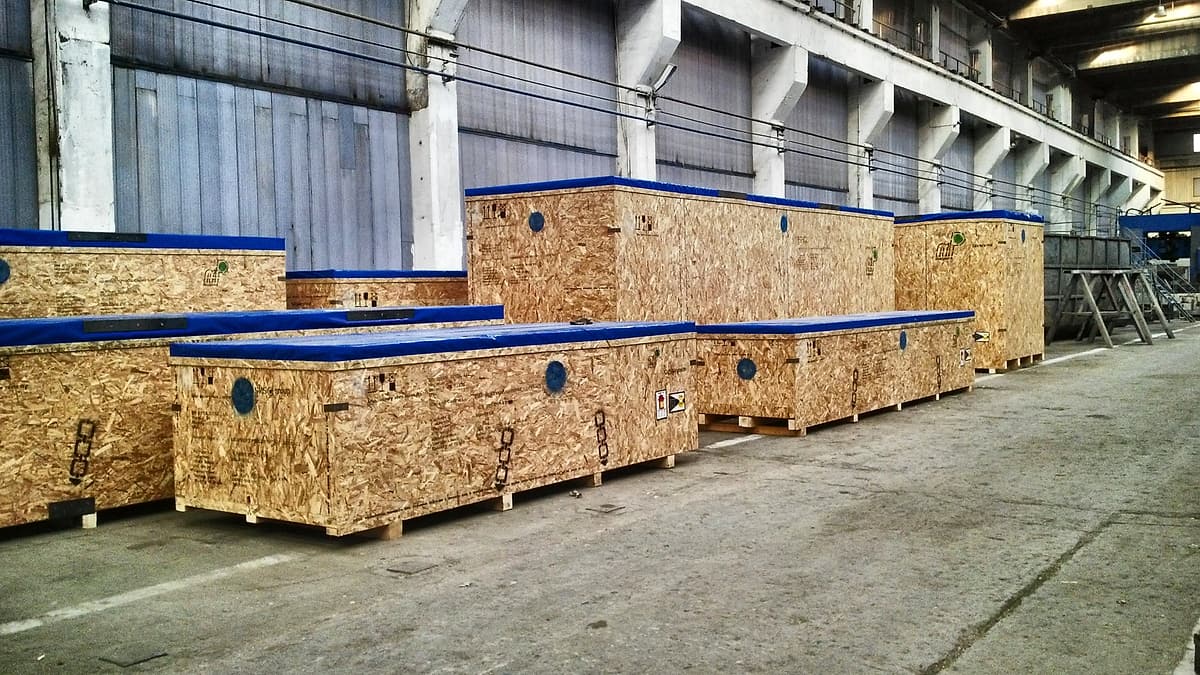

Wooden crates for sea freight, weatherproof wrapping, and oversize road transport.
| Packing | Sea-freight crates · shrink wrapping |
|---|---|
| Transport | Oversize road loads · rail access |
Cutting
- Oxy-fuel table2 500 × 12 000
- Laser12 kW
- Tolerance±0.5 mm
Pressing and rolling
- Press brake800 tf · 6 500 mm
- Rolling width3 150 mm
- Min. roll Ø550 mm
Welding
- ProcessesMIG · MAG · TIG
- Positionersup to 3 t
- Certified toEN ISO 3834-2
Machining
- NC boring X / Y14 000 / 3 300
- Soramill, 7 axesX 8 000 mm
- Vertical latheØ 3 300 mm
Surface and heat treatment
- Blasting cabin15 × 6 × 5 m
- Stress relief furnace800 °C
- Vibratory stress reliefup to 30 t
Quotation enquiries
Please send your technical drawings, specifications and required quantities for review.
