Cutting
NC oxy-fuel cutting of plate up to 200 mm and 12 kW laser cutting of plate up to 30 mm. Shearing and sawing are also available.
Oxy-fuel cutting, NC
Numerically controlled oxy-fuel cutting for thick plate.
| Table size | 2 500 × 12 000 mm |
|---|---|
| Cutting tolerance | ±0.5 mm |
| Maximum plate thickness | 200 mm |
Laser cutting
Laser cutting of sheet metal.
| Power | 12 kW |
|---|---|
| Table size | 2 000 × 6 000 mm |
| Cutting tolerance | ±0.1 mm |
| Maximum plate thickness | 30 mm |
Guillotine shear
Straight cutting of sheet metal.
| Maximum thickness | 15 mm |
|---|---|
| Maximum width | 2 500 mm |
Band saws
Cutting bar, tube and profiles to length.
| Maximum diameter | 300 mm |
|---|
Pressing and rolling
- Press brake800 tf · 6 500 mm
- Rolling width3 150 mm
- Min. roll Ø550 mm
Welding
- ProcessesMIG · MAG · TIG
- Positionersup to 3 t
- Certified toEN ISO 3834-2
Machining
- NC boring X / Y14 000 / 3 300
- Soramill, 7 axesX 8 000 mm
- Vertical latheØ 3 300 mm
Surface and heat treatment
- Blasting cabin15 × 6 × 5 m
- Stress relief furnace800 °C
- Vibratory stress reliefup to 30 t

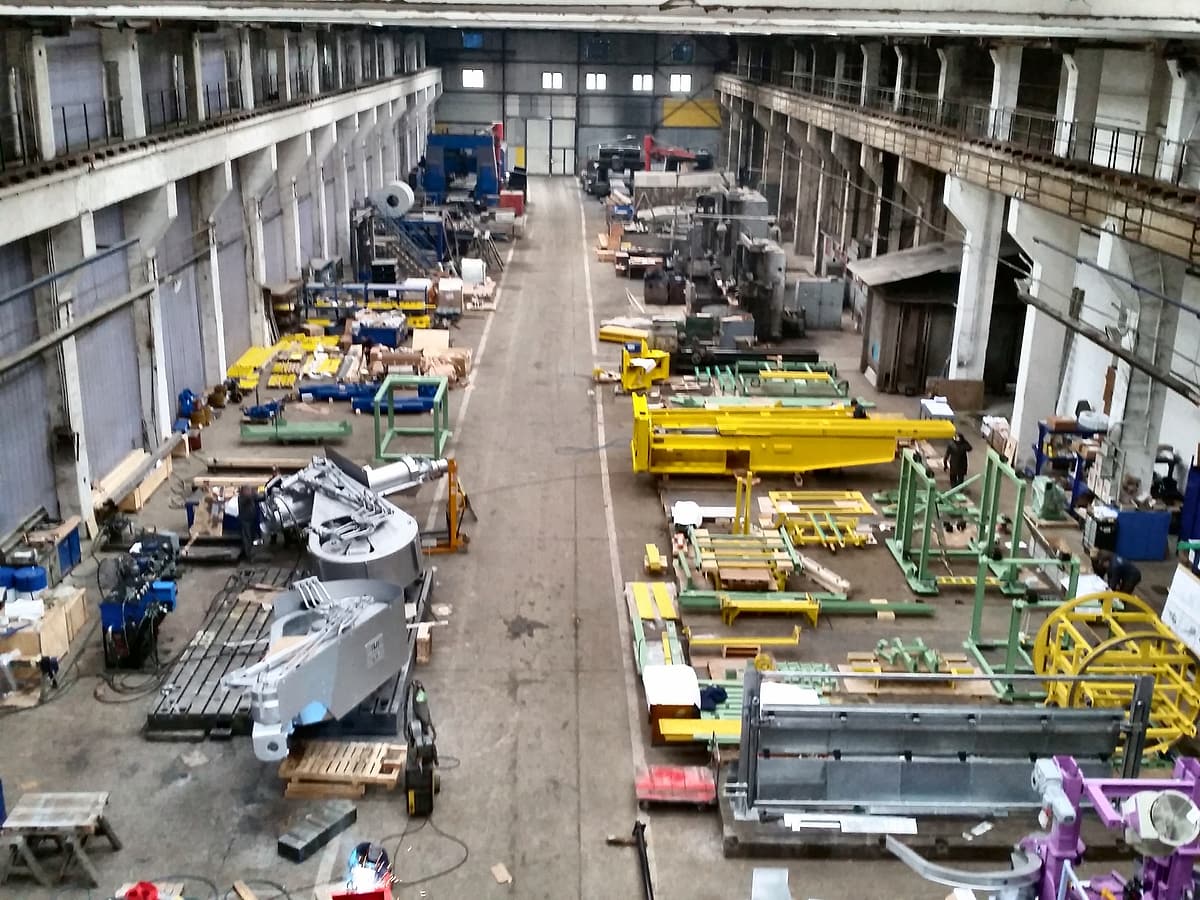

Assembly and testing
- SystemsElectrical · hydraulic · pneumatic
- Trial runbefore shipping
- Packingsea-freight crates
Quotation enquiries
Please send your technical drawings, specifications and required quantities for review.
