Surface and heat treatment
Blasting and painting of welded structures, post-weld stress relief, heat treatment and thermochemical treatment.

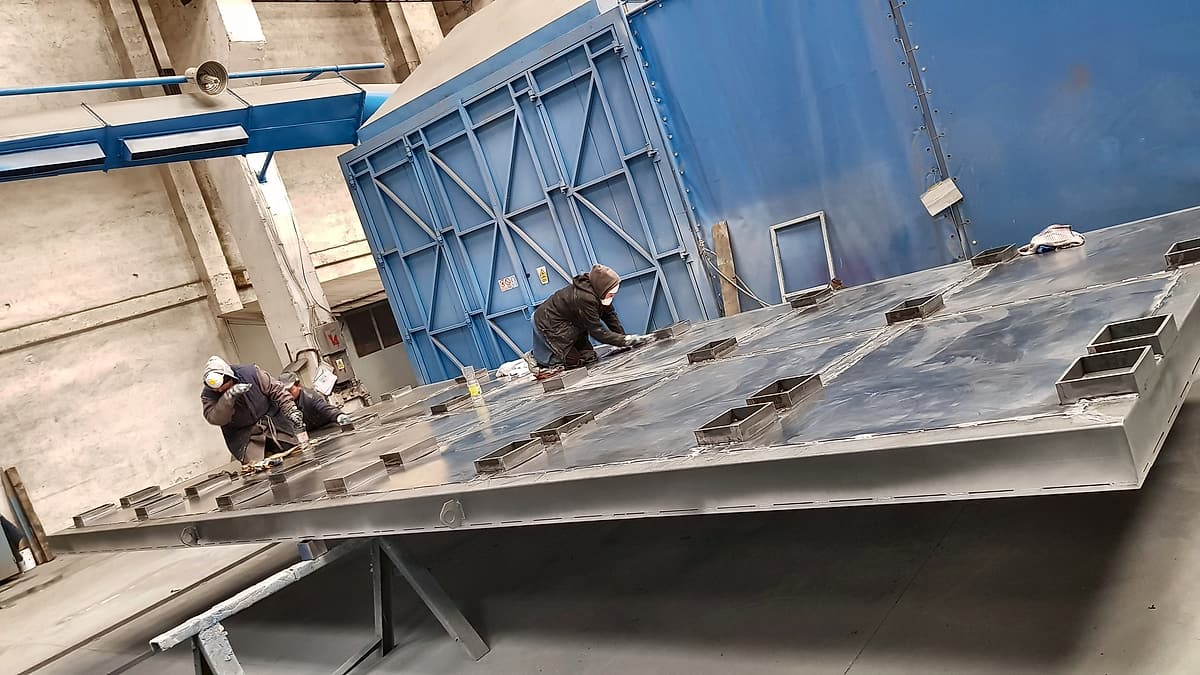

Blasting and painting
Blasting and painting booths for large welded structures, with trolleys and workpiece handling equipment.
| Blasting cabin | 15 000 × 6 000 × 5 000 mm |
|---|---|
| Paint cabin | 12 000 × 5 000 × 4 000 mm, up to 80 °C |
| Blasting cabinet, small parts | 1 000 × 600 × 800 mm |
Stress relief after welding
Thermal stress relief in an electric bogie-hearth furnace with programmable control, or mechanical relief by vibration.
| Furnace | 4 500 × 1 600 × 1 100 mm, 800 °C |
|---|---|
| Vibratory stress relief | Parts up to 30 t |
Heat and thermochemical treatment
Treatments for gears, shafts and wear parts.
| Treatments | Quench and temper · case hardening · carbonitriding · induction hardening · ion nitriding |
|---|
Cutting
- Oxy-fuel table2 500 × 12 000
- Laser12 kW
- Tolerance±0.5 mm
Pressing and rolling
- Press brake800 tf · 6 500 mm
- Rolling width3 150 mm
- Min. roll Ø550 mm
Welding
- ProcessesMIG · MAG · TIG
- Positionersup to 3 t
- Certified toEN ISO 3834-2
Machining
- NC boring X / Y14 000 / 3 300
- Soramill, 7 axesX 8 000 mm
- Vertical latheØ 3 300 mm
Assembly and testing
- SystemsElectrical · hydraulic · pneumatic
- Trial runbefore shipping
- Packingsea-freight crates
Quotation enquiries
Please send your technical drawings, specifications and required quantities for review.
