Machining · UMEM

Double boring and milling machines with numerical display and an NC rotary table built into the machine table.

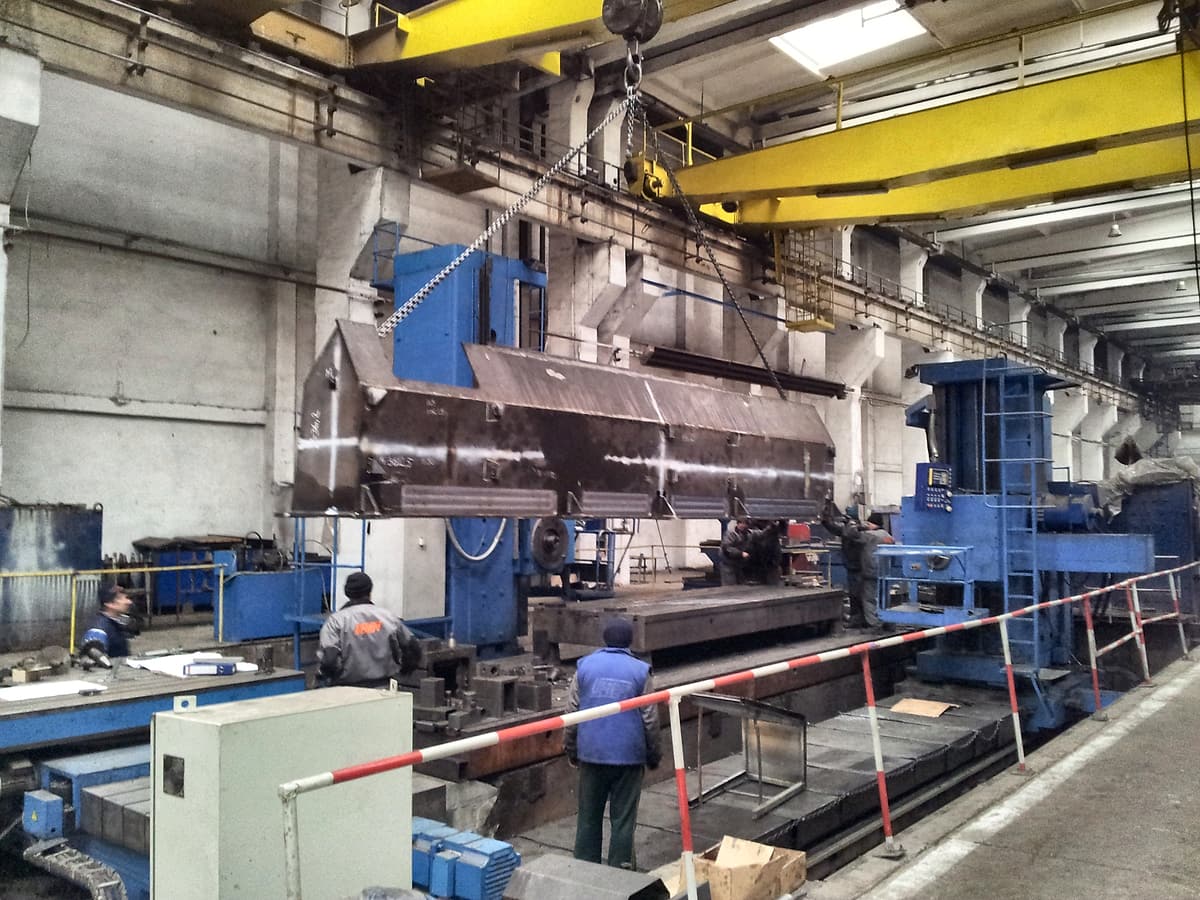

Milling, boring and drilling of large parts.

Travel	X 8 000 · Y 2 800 · Z 1 500 mm
Rotary table	2 500 × 2 500 mm, 30 t

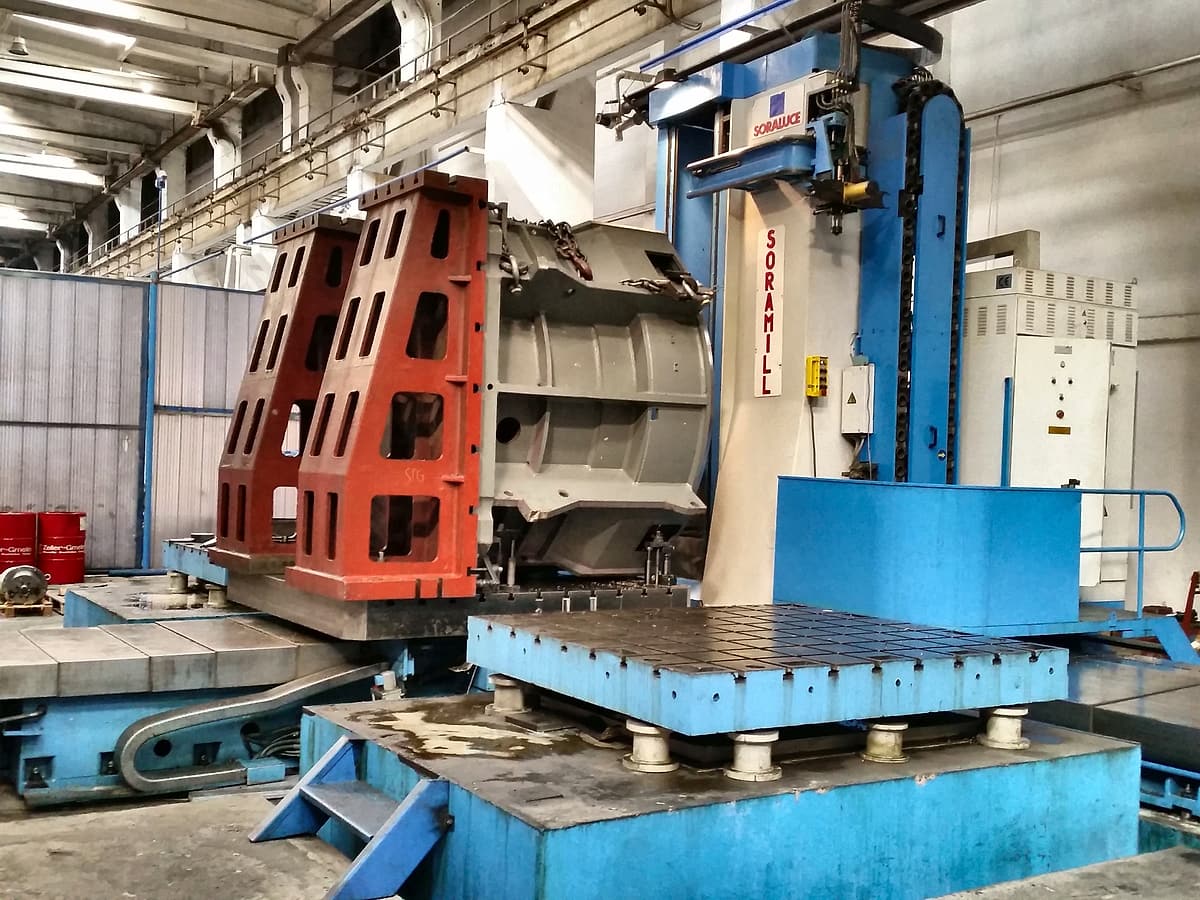

Milling, boring and drilling.

Travel	X 3 500 · Y 2 000 · Z+W 2 000+1 000 mm
Rotary table	2 500 × 2 000 mm, 30 t

Milling, boring and drilling.

Travel	X 3 000 · Y 2 000 · Z+W 900+700 mm
Rotary table	2 500 × 2 000 mm, 20 t

Milling of large flat parts on portal mills and turning of large-diameter parts on vertical lathes.

Portal milling	2 000 × 6 000 mm

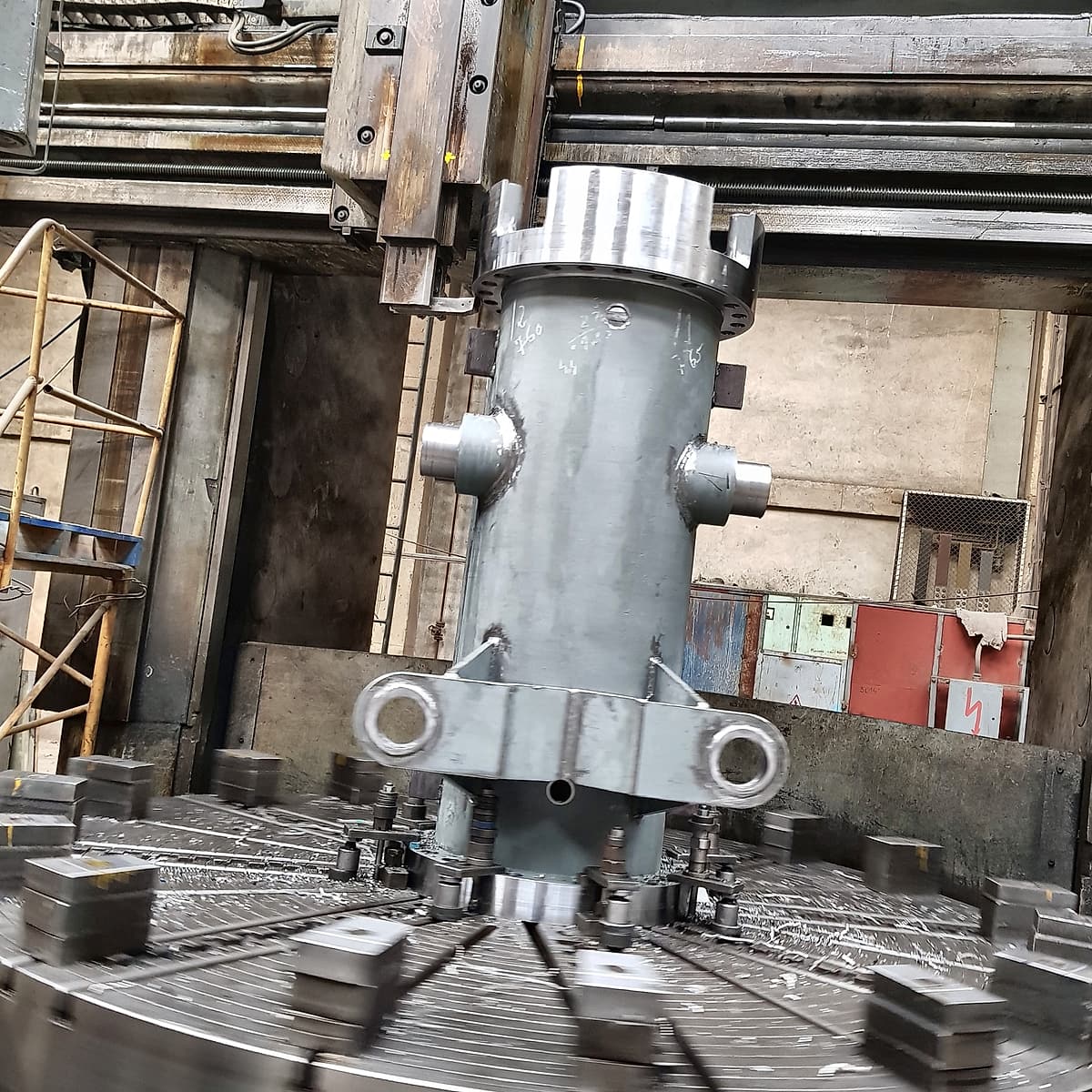

Vertical lathe	Ø 3 300 mm

Spur and helical gears with internal or external teeth, and straight or spiral bevel gears.

Spur and helical	Module 1–12, Ø 1 000 mm
Bevel	Module 3–16, Ø 750 mm

Lathes, milling, drilling and grinding machines, several with digital readouts, for smaller parts and finishing.

Machines	Lathes · milling · radial drilling · grinding

Quotation enquiries

Please send your technical drawings, specifications and required quantities for review.
